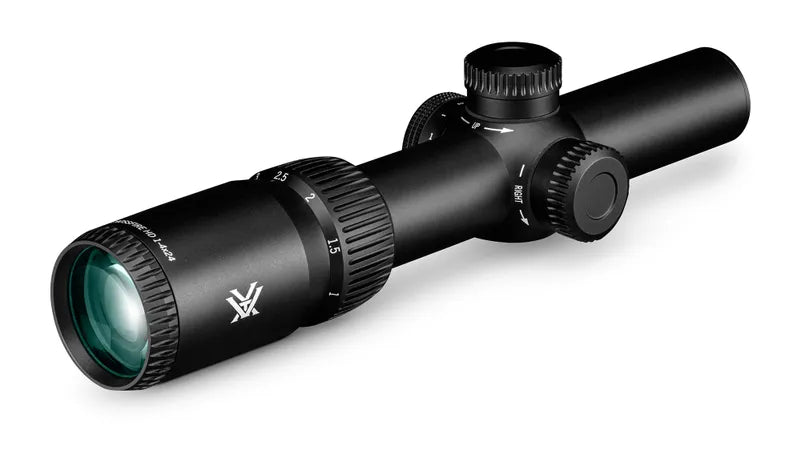

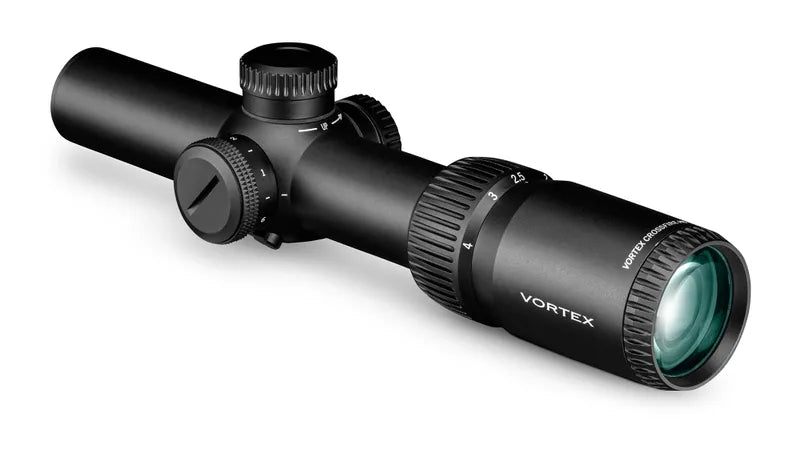

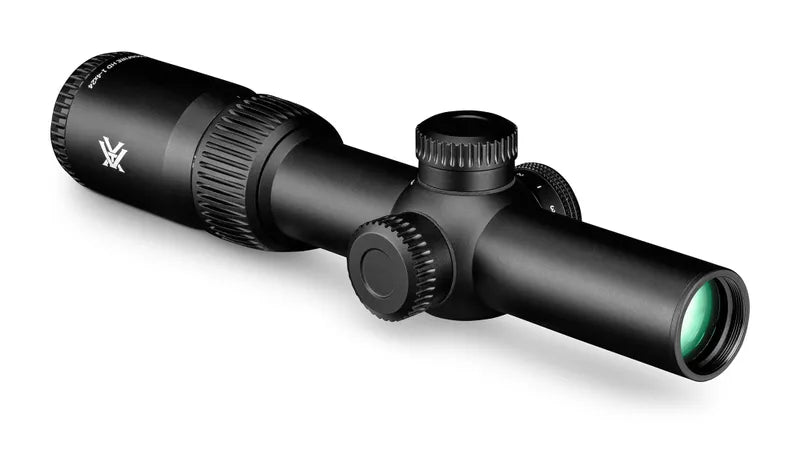

CROSSFIRE® HD 1-4x24 SFP
ILLUMINATED DEAD-HOLD® 2A BDC (MOA) RETICLE | 30MM TUBE
The Crossfire® HD 1-4x24 is your go-to for close- to mid-range hunting. Quick target acquisition. Lightweight handling. Illuminated center dot. It’s a LPVO versatile enough for any rifle where agility matters.
SPECIFICATIONS
| Magnification | 1-4x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Focal Plane | Second Focal Plane |

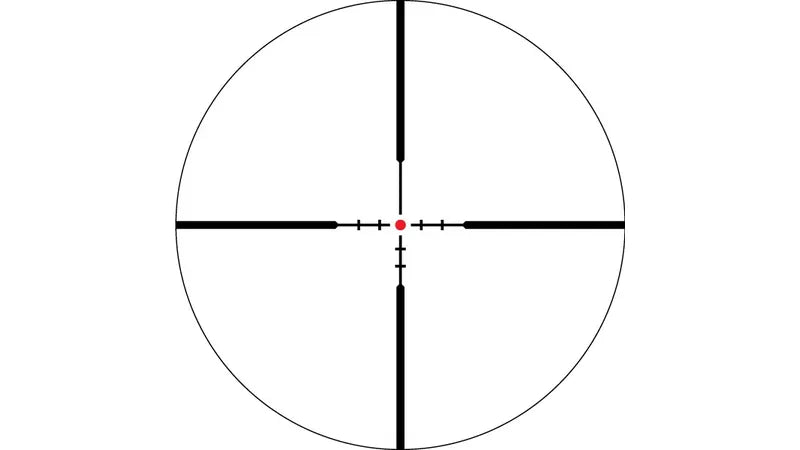

| Reticle | Illuminated Dead-Hold® 2A BDC (MOA) |
| Eye Relief | 3.8" |
| Field of View | 109.5' - 26.7' @ 100 yds. |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | 1/2 MOA |
| Travel Per Rotation | 30 MOA |
| Max Elevation Adjustment | 130 MOA |
| Max Windage Adjustment | 130 MOA |
| Parallax Setting | 100 yds. |
| Length | 9.5" |
| Weight | 15.3 oz. |
FEATURE TECH
HD OPTICAL SYSTEM
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
ILLUMINATED RETICLE
Provides precise aiming under low-light conditions.
FULLY MULTI-COATED LENSES
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
FAST-FOCUS EYEPIECE
Allows for quick and easy reticle focusing.
AIRCRAFT GRADE ALUMINUM
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
LOW-GLARE MATTE BLACK ANODIZE
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
WATERPROOF
Designed to withstand harsh weather conditions.
FOGPROOF
Designed to withstand a wide range of temperatures.
SHOCKPROOF
Designed to withstand the highest levels of recoil and impact.
